Blind Side Dectection Radar Sensors For School Bus.
Blind Side Dectection Radar Sensors For School Bus.
Offered Only By Bestek Solutions Inc.
1, Functions:
Through installing 2pcs of special 24GHZ microwave sensors on the
vehicle side, when the vehicle is moving, if any moving object closer to blind
area( 3 meter from right and left side ,15 meters from behind),the object will be
detected by system sensor , the LED indicator will turn on and keep shining for
reminding driver, in this condition, if the driver wants to change the lane, the
buzzer will beep sounds for reminder.
2, Specifications:

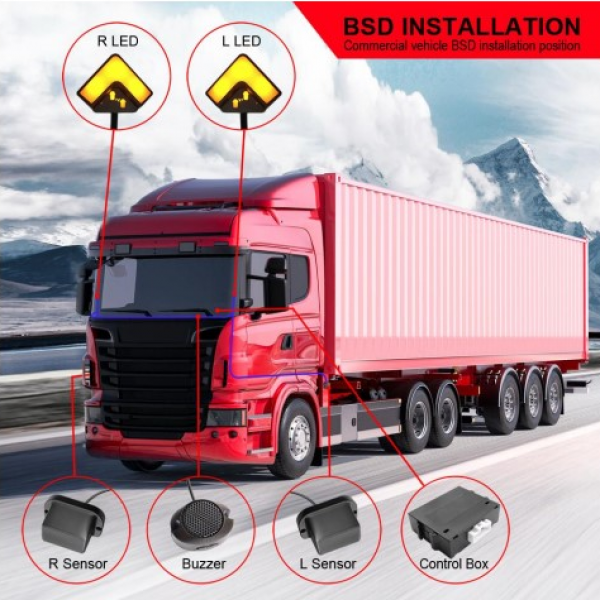

1, This system combine the 2 radar sensors, one buzzer and 2 indicate LEDs.
2, Wide voltage from DC 9V to 36v, it is easy to install on the vehicle, truck,
SUV, MPV etc.
3, Measure distance 0.3—15M for truck and 6m for human.

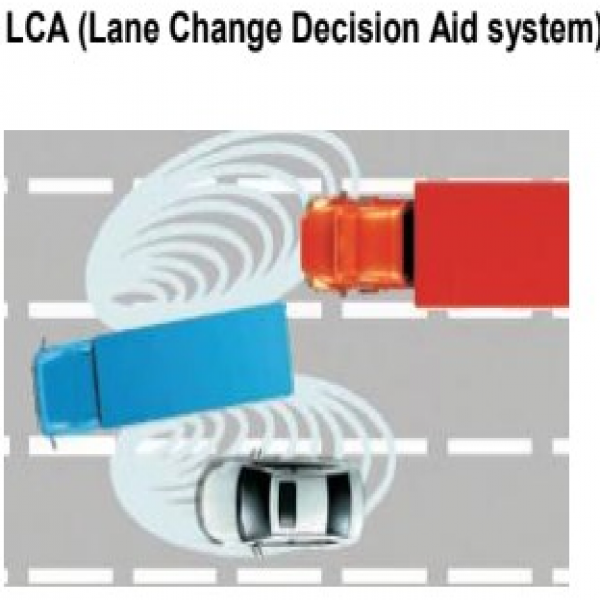

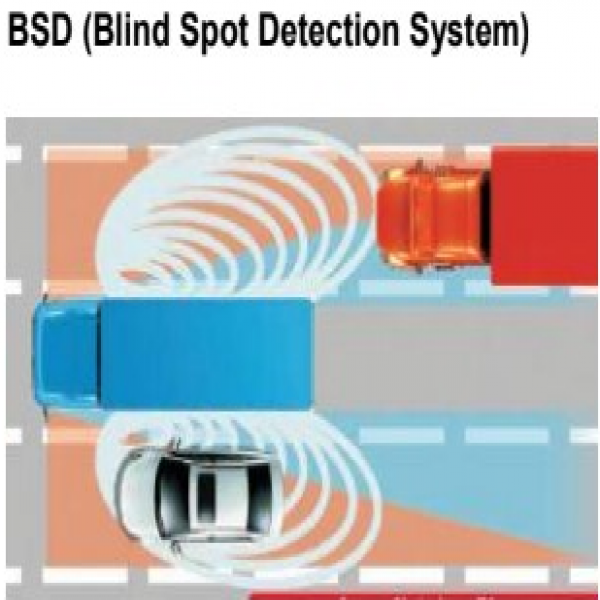

4, Blind spot detection, lane change decision aid system.
5, Led and buzzer alarm, collision warning.
6,When the speed over 0mph,the system will working.
7,Low power consumption, suitable for long-term power work.
8,All cable sockets have self-locking function. To avoid poor contact when the
car vibration.
9,High quality and easy to install
3, Technical Parameters:
1, Operating Voltage Range: 9V -- 36V DC
2, Rated Current: 180mA
3, Detecting Distance: 0.3~15Meter for vehicle and 10 meter for human.
4,Radar Frequency: 24GHz
5, Radar sensor Angle: H<52degree, V<28degree
6.Operating temperature: -30 - 70 deg. C
